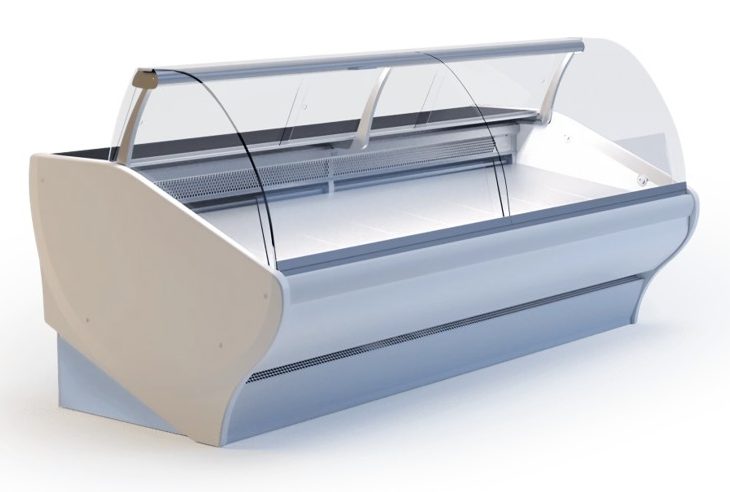

Tobi

Standard Features

• Static cooling
• 13 AMP supply
• Electronic temperature controller with digital display
• Exterior powder coated white paint with colour trim
• Stainless steel worktop
• White LED lighting
• Auto defrost
• Curved front glass
•Display decking white powder painted galvanised steel
•Front glass defogger
•Different colour options available (P.O.A)
•Suitable for use in ambient temp. up to 25oc & 65% RH
• servicing

•Refrigerated under storage
• Ambient intermediate glass shelf

• Sides with ABS with polyurethane

Category: Tags: , ,

Description

Model Width (mm) Height (mm) Depth (mm) Display Area (mm) Weight (kg) Temp Range Energy Consumption Refrigerant Voltage Auto Defrost RRP (£)
TOBI110 1040 1230+/-10 1165 1040×770 140 Deli +1/+10°c 3.4 (kWh/h) R290 230/50Hz Yes 3337
TOBI140 1370 1230+/-10 1165 1287×770 160 Deli +1/+10°c 3.5 (kWh/h) R290 230/50Hz Yes 3695
TOBI170 1670 1230+/-10 1165 1587×770 190 Deli +1/+10°c 4.4 (kWh/h) R290 230/50Hz Yes 4516
TOBI210 2000 1230+/-10 1165 1917×770 215 Deli +1/+10°c 4.6 (kWh/h) R290 230/50Hz Yes 5073
TOBI250 2540 1230+/-10 1165 2457×770 290 Deli +1/+10°c 6.2 (kWh/h) R290 230/50Hz Yes 6223
TOBI300 3260 1230+/-10 1165 770 355 Deli +1/+10°c 8.3 (kWh/h) R290 230/50Hz Yes 7717

Optional Extras

Optional Extras:

303

20mm Grey granite worktop (per meter)

£100

1201

Moveable partition (low glass on stand) per meter

£100

3002

Castors (per meter)

£300

1202

Fixed partition (high glass on deck) per meter

£120

5002

Different front panel colour (per meter)

£100

321

Electric temp. recorder, software & wire

£170

5003

Different base panel colour (per meter)

£30

816

Illuminated front panel with squares (per meter)

£360

Colors

black structure white structure black white brown dark grey light grey blue green red orange yellow cappucino silver gold transparent
Black

Structure

 White Structure Black * White * Brown Dark Grey Light Grey Blue Green Red Orange Yellow Cappucino Silver Gold Transparent
Colour of

metal parts –

front

 RAL 9005 RAL 9003 RAL 9005 RAL 9003 RAL 8014 RAL 7031 RAL 7001 RAL 5005 RAL 6029 RAL 3020 – RAL 1018 – RAL 9006 IG 01 –
plastic fenders

colors

 – – OD 05 – – – OD 06 OD 04 OD 02 OD 01 – OD 03 – – – –
Plastic price

stripes colors

 – – LCP 08 LCP 02 – – – LCP 05 LCP 03 LCP 01 LCP 06 LCP 04 – – – LCP 07
plastic sides

colors

 – – AB 03 AB 02 AB 01 – – – – – – – AB 04 AB 05 – –
Anodized

Aluminum

Profiles Colors

 – – – – – – – – – – – – – AL 02 AL 01 –

Downloads

Manual:
