Description

Model

Width (mm)

Height (mm)

Depth (mm)

Temp Range (°c)

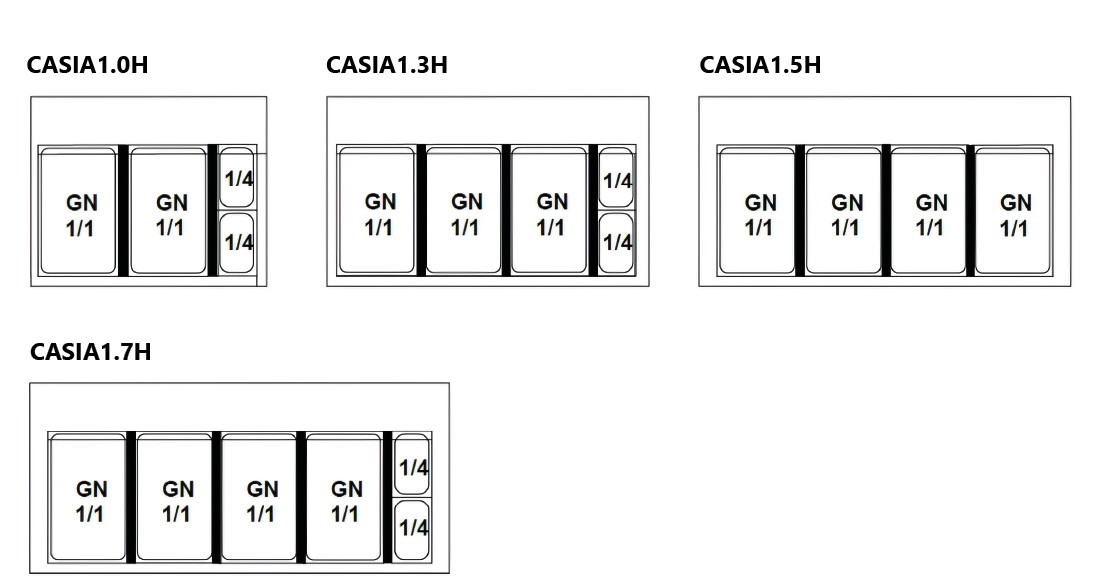

GN Configuration

Weight (kg)

Voltage

Energy Consumption

Auto Defrost

RRP

CASIA1H

990

1190+/-10

820

+30/+90

2 x 1/1 + 3 x 1/4

70

230/50HZ

22.7 (kWh/24h)

Yes

£2310

CASIA1.3H

1300

1190+/-10

820

+30/+90

3 x 1/1 + 2 x 1/4

80

230/50HZ

22.9 (kWh/24h)

Yes

£2959

CASIA1.5H

1500

1190+/-10

820

+30/+90

4 x 1/1

90

230/50HZ

22.9 (kWh/24h)

Yes

£3365

CASIA1.7H

1700

1190+/-10

820

+30/+90

4 x 1/1 + 2 x 1/4

105

230/50HZ

22.9 (kWh/24h)

Yes

£3604

Optional Extras

Optional Extras:

1112

Glass shelf (per meter)

£120

3002

Castors (per meter)

£300

Colors

black structure white structure black white  brown dark grey light grey blue green red orange yellow cappucino silver gold transparent

Black

Structure

White Structure Black * White * Brown Dark Grey Light Grey Blue Green Red Orange Yellow Cappucino Silver Gold Transparent

Colour of

metal parts –

front

RAL 9005 RAL 9003 RAL 9005 RAL 9003 RAL 8014 RAL 7031 RAL 7001 RAL 5005 RAL 6029 RAL 3020 RAL 1018 RAL 9006 IG 01

plastic fenders

colors

OD 05 OD 06 OD 04 OD 02 OD 01 OD 03

Plastic price

stripes colors

LCP 08 LCP 02 LCP 05 LCP 03 LCP 01 LCP 06 LCP 04 LCP 07

plastic sides

colors

AB 03 AB 02 AB 01 AB 04 AB 05

Anodized

Aluminum

Profiles Colors

AL 02 AL 01

Downloads

Manual:
