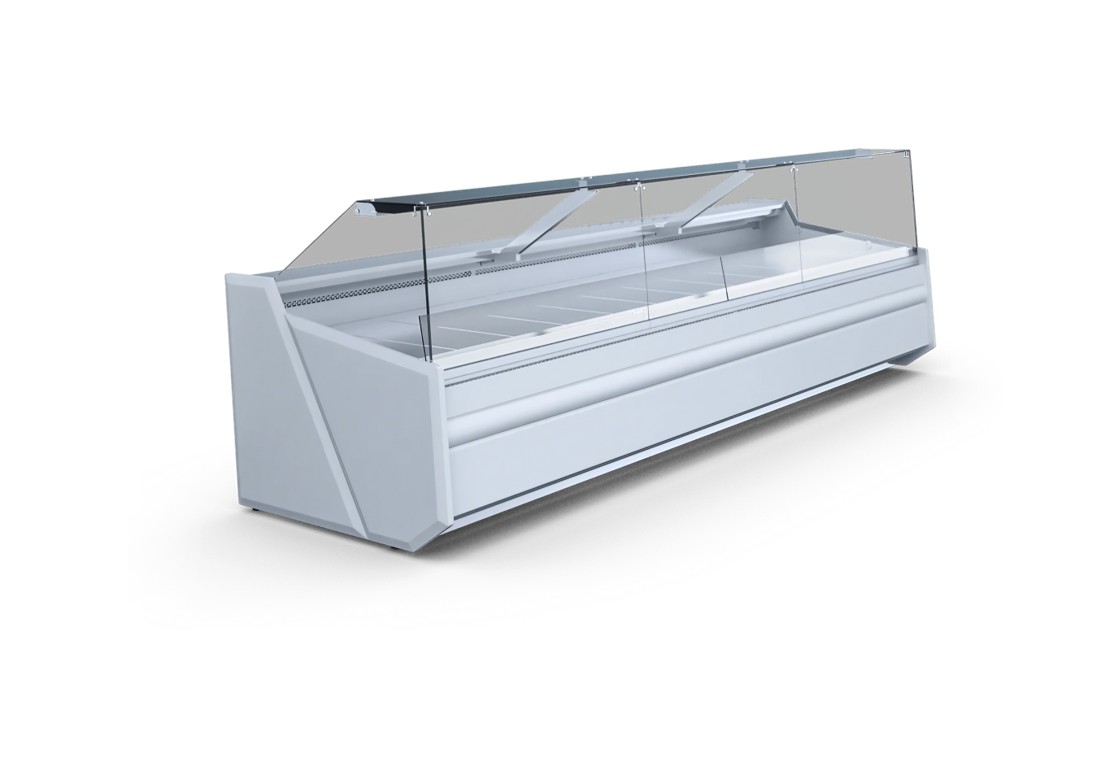

Luzon Deep Meat

Standard Features

• Ventilated cooling
• 900mm deep decking
• Electronic temperature controller with digital display
• Exterior powder coated white paint with coloured trim
• Stainless steel worktop
• White LED lighting
• Auto defrost
• Straight front glass
• Compressor on built in rails for easy servicing
• Refrigerated under storage
• Ambient intermediate glass shelf with LED
• ABS side panels
• Display decking in stainless steel
• Rear sliding Perspex doors
• Front glass defogger
• Different colour options available (POA)
• Suitable for use in temp. up to 25°c & 65% RH
• 13AMP supply
• Condenser or fan failure alarm

Category: Tag:

Description

Model

Width (mm)

Height (mm)

Depth (mm)

Temp Range (°c)

Power (w)

Weight (kg)

Voltage

Energy Consumption

Refrigerant

Auto Defrost

RRP

BA220WGM

1020

1220+/-10

1180

-2/+4

287

140

230/50HZ

4.0 (kWh/24h)

R290

Yes

£4093

BA230WGM

1330

1220+/-10

1180

-2/+4

290

160

230/50HZ

4.1 (kWh/24h)

R290

Yes

£4713

BA240WGM

1645

1220+/-10

1180

-2/+4

365

190

230/50HZ

5.1 (kWh/24h)

R290

Yes

£5560

BA250WGM

1960

1220+/-10

1180

-2/+4

435

215

230/50HZ

6.1 (kWh/24h)

R290

Yes

£6591

BA260WGM

2580

1220+/-10

1180

-2/+4

599

290

230/50HZ

8.4 (kWh/24h)

R290

Yes

£8077

BA270WGM

3210

1220+/-10

1180

-2/+4

677

340

230/50HZ

9.5 (kWh/24h)

R290

Yes

 £9935

BA280WGM

3830

1220+/-10

1180

-2/+4

940

390

230/50HZ

13.5 (kWh/24h)

R290

Yes

 £11177

Optional Extras

303: 20mm Grey granite worktop (per meter) £100 1201 Moveable partition (low glass on stand) per meter £80
3002: Castors (per meter) £250 1202 Fixed partition (high glass on deck) per meter £120
5002: Different front panel colour (per meter) £100 333 Small moveable table for scales or cash register £290
5003: Different base panel colour (per meter) £30 3006 Additional LED light on the front base panel (per meter) £120

Colors

black structure white structure black white brown dark grey light grey blue green red orange yellow cappucino silver gold transparent
Black

Structure

 White Structure Black * White * Brown Dark Grey Light Grey Blue Green Red Orange Yellow Cappucino Silver Gold Transparent
Colour of

metal parts –

front

 RAL 9005 RAL 9003 RAL 9005 RAL 9003 RAL 8014 RAL 7031 RAL 7001 RAL 5005 RAL 6029 RAL 3020 – RAL 1018 – RAL 9006 IG 01 –
plastic fenders

colors

 – – OD 05 – – – OD 06 OD 04 OD 02 OD 01 – OD 03 – – – –
Plastic price

stripes colors

 – – LCP 08 LCP 02 – – – LCP 05 LCP 03 LCP 01 LCP 06 LCP 04 – – – LCP 07
plastic sides

colors

 – – AB 03 AB 02 AB 01 – – – – – – – AB 04 AB 05 – –
Anodized

Aluminum

Profiles Colors

 – – – – – – – – – – – – – AL 02 AL 01 –

Downloads

Manual:
