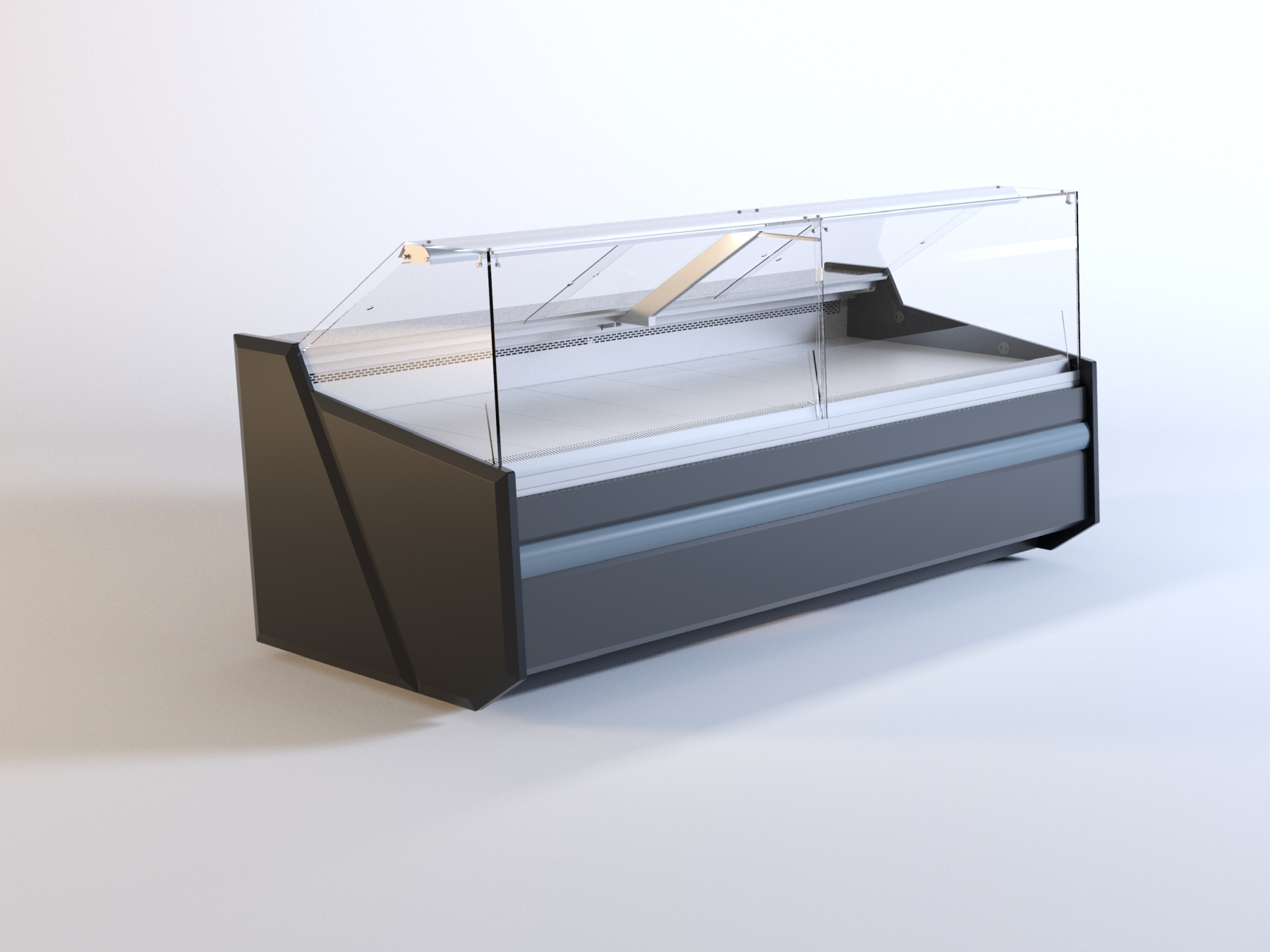

Luzon Deep

Standard Features


• Ventilated cooling
• 13AMP supply
• Electronic temperature controller with digital display
• Exterior powder coated white paint with coloured trim
• Stainless steel worktop
• White LED lighting
• Auto defrost
• Straight front glass
• Compressor on built in rails for easy servicing
• Refrigerated understorage
• Ambient intermediate glass shelf • Side with ABS with polyurethane
• Display decking with white powder painted galvanised steel
• Rear sliding perspex doors
• Front glass defogger
• Different colour options available
• Suitable for use in temp. up to 25°c & 65% RH

Category: Tag:

Description

Model

Width (mm)

Height (mm)

Depth (mm)

Temp Range (°c)

Power (w)

Weight (kg)

Voltage

Energy Consumption

Refrigerant

Auto Defrost

RRP

BA220WG

1020

1230+/-10

1180

+1/+10

347

120

230/50Hz

4.9(kWh/24h)

R134a

Yes

£3779

BA230WG

1330

1230+/-10

1180

+1/+10

423

140

230/50Hz

5.9(kWh/24h)

R134a

Yes

£4301

BA240WG

1645

1230+/-10

1180

+1/+10

438

170

230/50Hz

6.1(kWh/24h)

R134a

Yes

£5072

BA250WG

1960

1230+/-10

1180

+1/+10

651

200

230/50Hz

9.1(kWh/24h)

R404a/R507

Yes

£5960

BA260WG

2580

1230+/-10

1180

+1/+10

723

260

230/50Hz

10.1(kWh/24h)

R404a/R507

Yes

£7152

BA270WG

3210

1220+/-10

1180

+1/+10

1092

320

230/50Hz

15.3(kWh/24h)

R404a/R507

Yes

 £8906

BA280WG

3830

1220+/-10

1180

+1/+10

1209

380

230/50Hz

16.9(kWh/24h)

R404a/R507

Yes

 £9973

Optional Extras

Optional Extras:

303

20mm Grey granite worktop

£100

1201

Moveable partition (low glass on stand) per meter

£100

3002

Castors (per meter)

£300

1202

Fixed partition (high glass on deck) per meter

£120

5002

Different front panel colour (per meter)

£100

321

Electric temp. recorder, software & wire

£170

5003

Different base panel colour (per meter)

£30

123

Multiplexing (per unit)

+10%

Colors

black structure white structure black white brown dark grey light grey blue green red orange yellow cappucino silver gold transparent
Black

Structure

 White Structure Black * White * Brown Dark Grey Light Grey Blue Green Red Orange Yellow Cappucino Silver Gold Transparent
Colour of

metal parts –

front

 RAL 9005 RAL 9003 RAL 9005 RAL 9003 RAL 8014 RAL 7031 RAL 7001 RAL 5005 RAL 6029 RAL 3020 – RAL 1018 – RAL 9006 IG 01 –
plastic fenders

colors

 – – OD 05 – – – OD 06 OD 04 OD 02 OD 01 – OD 03 – – – –
Plastic price

stripes colors

 – – LCP 08 LCP 02 – – – LCP 05 LCP 03 LCP 01 LCP 06 LCP 04 – – – LCP 07
plastic sides

colors

 – – AB 03 AB 02 AB 01 – – – – – – – AB 04 AB 05 – –
Anodized

Aluminum

Profiles Colors

 – – – – – – – – – – – – – AL 02 AL 01 –

Downloads

Manual:
