Description

Model

Width (mm)

Height (mm)

Depth (mm)

Temp, Range(°c)

Loading capacity

Energy Consumption

Weight

Voltage

Refrigerant

Auto Defrost

RRP

GELATTI 1000

1050

1230+/-10

835

-10/-20

8 Pans

9.3 (kWh/24h)

120

230/50Hz

R404a/507

Yes

£4114

GELATTI 1700

1710

1230+/-10

835

-10/-20

14 Pans

18.4 (kWh/24h)

180

230/50Hz

R404a/507

Yes

£6578

Optional Extras

Optional Extras:

604

Staff side in stainless steel finish (per meter)

£54

903

Stainless steel front panel (per meter)

£115

909

Stainless steel base (per meter)

£69

1020

Automatic scoop wash with water flow

£412

1019

Napoli pans (5ltr)

£54

980

Stainless steel finish

+15%

Colors

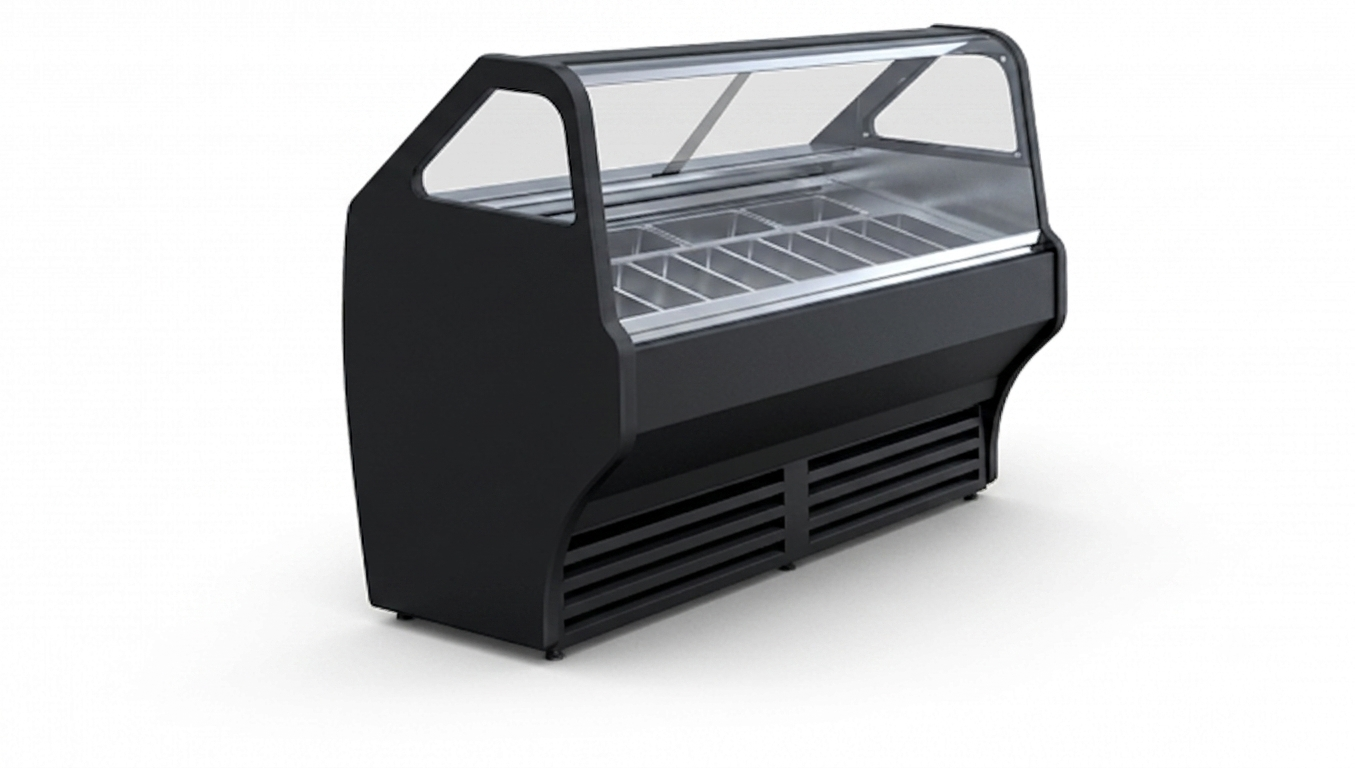

black structure white structure black white  brown dark grey light grey blue green red orange yellow cappucino silver gold transparent
black structure white structure black * white * brown dark grey light grey blue green red orange yellow cappucino silver gold transparent
Colour of metal parts – front RAL 9005 RAL 9003 RAL 9005 RAL 9003 RAL 8014 RAL 7031 RAL 7001 RAL 5005 RAL 6029 RAL 3020 RAL 1018 RAL 9006 IG 01
plastic fenders colors OD 05 OD 06 OD 04 OD 02 OD 01 OD 03
Plastic price stripes colors LCP 08 LCP 02 LCP 05 LCP 03 LCP 01 LCP 06 LCP 04 LCP 07
plastic sides colors AB 03 AB 02 AB 01 AB 04 AB 05
Anodized Aluminum Profiles Colors AL 02 AL 01

Downloads

Manual:
