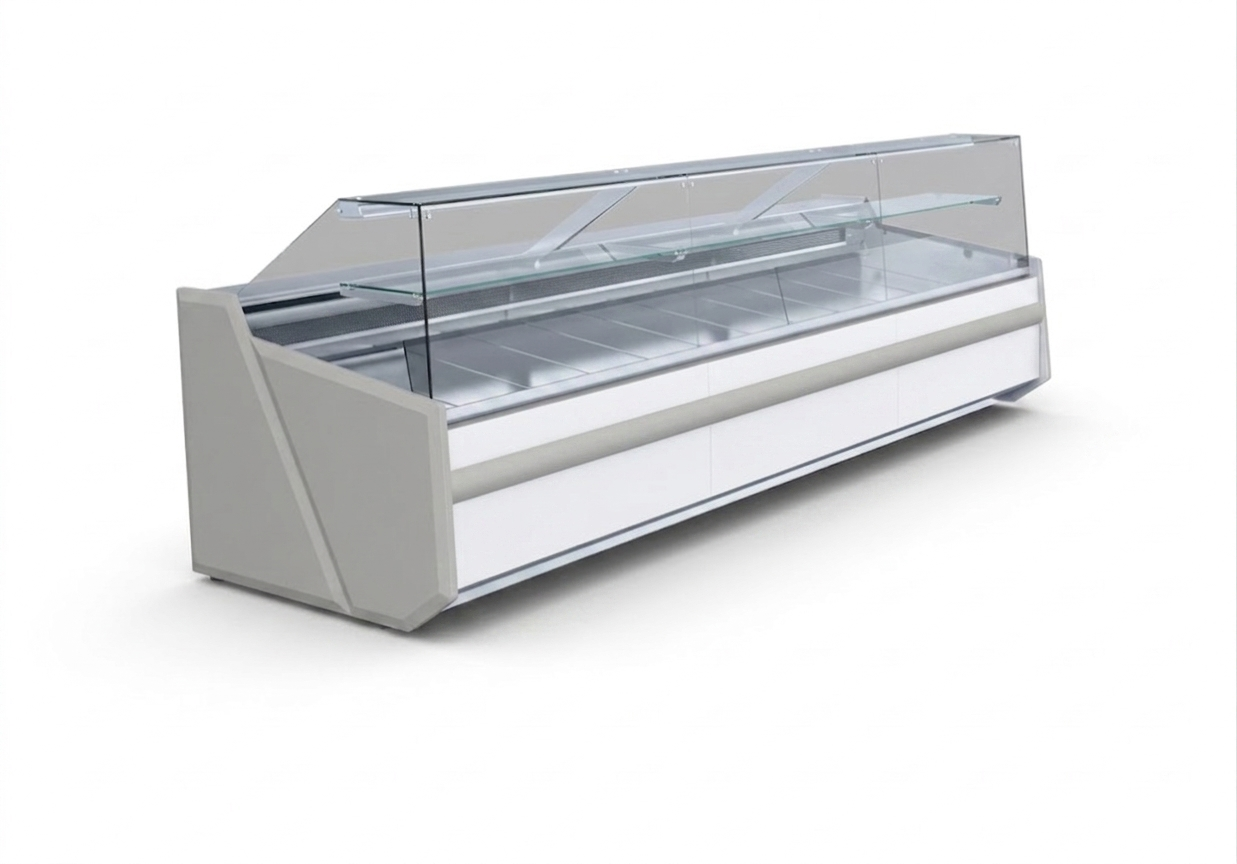

Luzon

Standard Features

• Static cooling
• 13AMP supply
• Electronic temperature controller with digital display
• Exterior powder coated white paint with coloured trim
• Stainless steel worktop
• White LED lighting
• Auto defrost
• Straight front glass
• Compressor on built in rails for easy servicing
• Refrigerated understorage
• Ambient intermediate glass shelf
• Sides with ABS with polyurethane
• Display decking with white powder painted
galvanised steel
• Rear sliding perspex doors
• Front glass defogger
• Different colour options available
• Suitable for use in temp. up to 25°c & 65% RH

Category: Tag:

Description

Model

Width (mm)

Height (mm)

Depth (mm)

Temp Range (°c)

Power (w)

Weight (kg)

Voltage

Energy Consumption

Refrigerant

Auto Defrost

RRP

BA200

1020

1220+/-10

1180

+1/+10

287

140

230/50HZ

4.0 (kWh/24h)

R134a

Yes

£3387

BA201

1330

1220+/-10

1180

+1/+10

290

160

230/50HZ

4.1 (kWh/24h)

R134a

Yes

£3749

BA202

1645

1220+/-10

1180

+1/+10

365

190

230/50HZ

5.1 (kWh/24h)

R134a

Yes

£4512

BA203

1960

1220+/-10

1180

+1/+10

435

215

230/50HZ

6.1 (kWh/24h)

R404a/R507

Yes

£5315

BA204

2580

1220+/-10

1180

+1/+10

599

290

230/50HZ

8.4 (kWh/24h)

R404a/R507

Yes

£6404

BA205

3210

1220+/-10

1180

+1/+10

677

230/50HZ

9.5 (kWh/24h)

R404a/R507

 Yes £7938

BA206

3830

1220+/-10

1180

+1/+10

940

230/50HZ

13.2 (kWh/24h

R404a/R507

 Yes £9116



Colors

black structure white structure black white brown dark grey light grey blue green red orange yellow cappucino silver gold transparent

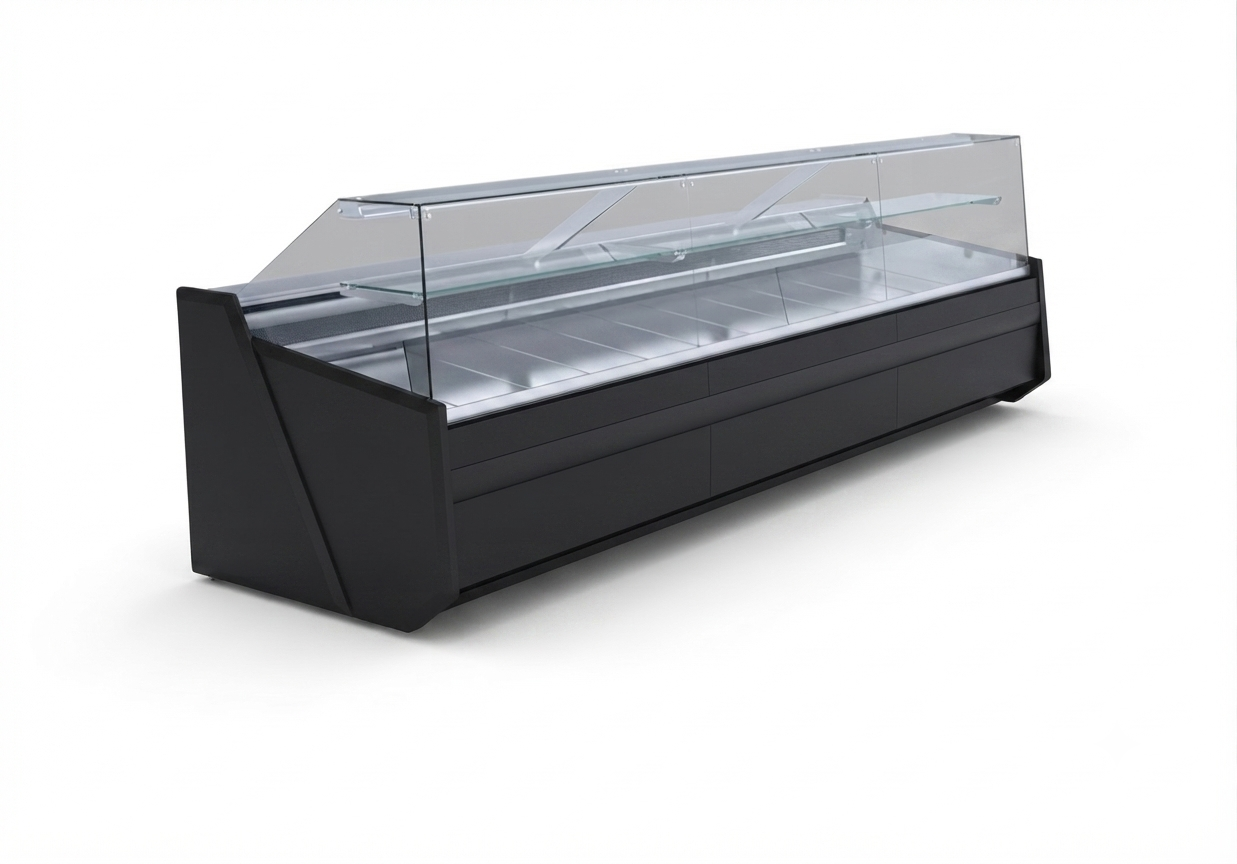

Black

Structure

 White Structure Black * White * Brown Dark Grey Light Grey Blue Green Red Orange Yellow Cappucino Silver Gold Transparent
Colour of

metal parts –

front

 RAL 9005 RAL 9003 RAL 9005 RAL 9003 RAL 8014 RAL 7031 RAL 7001 RAL 5005 RAL 6029 RAL 3020 – RAL 1018 – RAL 9006 IG 01 –
plastic fenders

colors

 – – OD 05 – – – OD 06 OD 04 OD 02 OD 01 – OD 03 – – – –
Plastic price

stripes colors

 – – LCP 08 LCP 02 – – – LCP 05 LCP 03 LCP 01 LCP 06 LCP 04 – – – LCP 07
plastic sides

colors

 – – AB 03 AB 02 AB 01 – – – – – – – AB 04 AB 05 – –
Anodized

Aluminum

Profiles Colors

 – – – – – – – – – – – – – AL 02 AL 01 –
