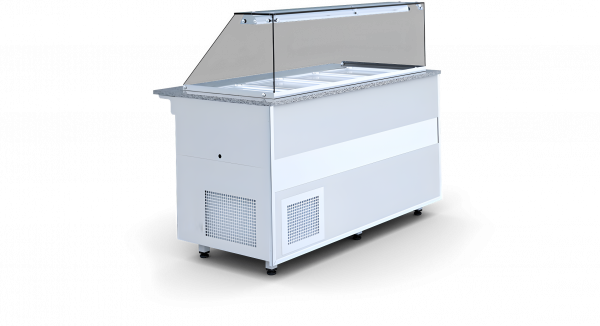

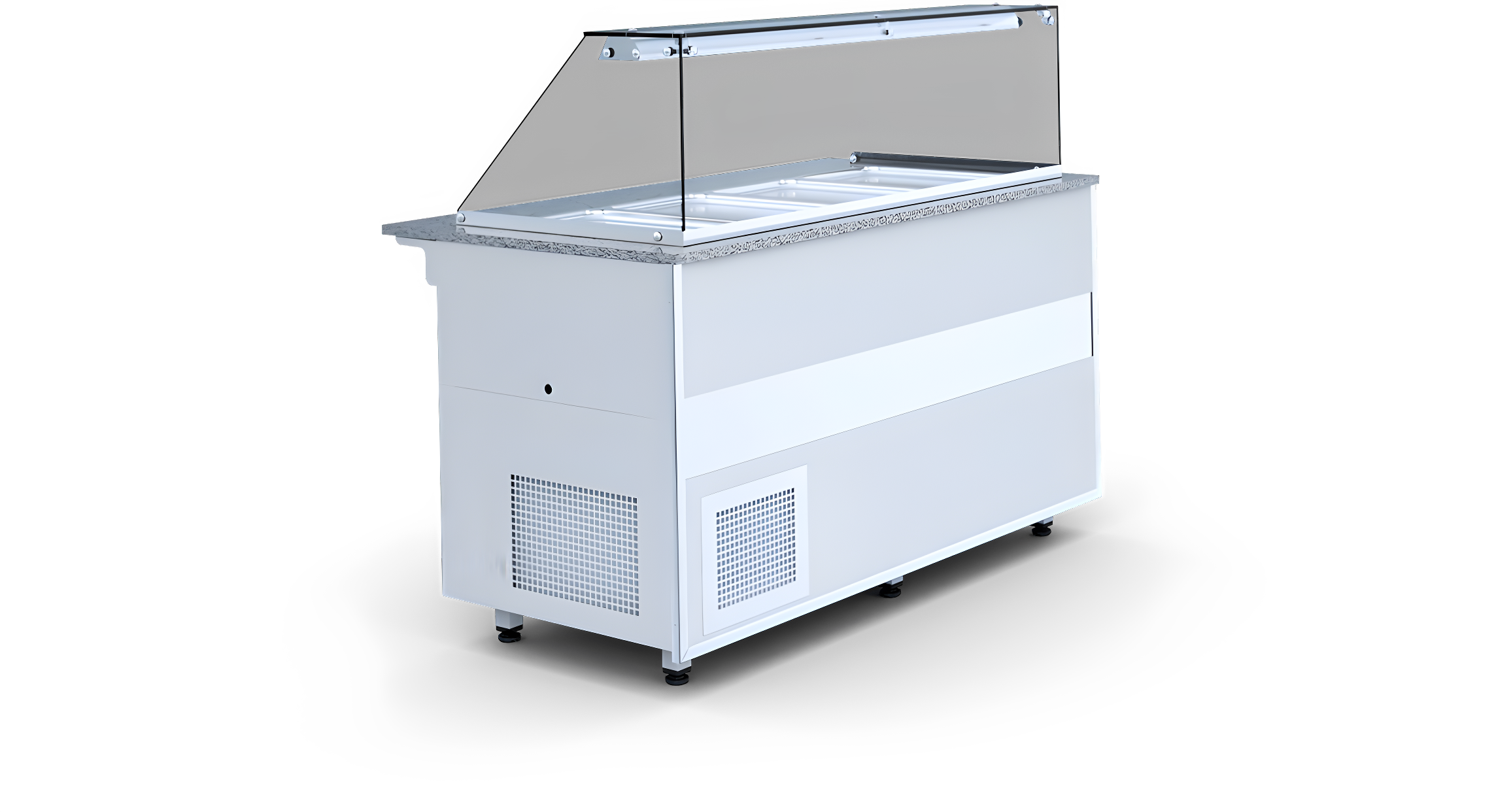

Gastroline Closed

Cold Version:
• Ventilated cooling
• 13 AMP supply
• Electronic temperature controller with digital display
• External housing made of black coated steel
• Black wood front panel with stainless steel trim
• 20mm Black granite worktop
• White LED light
• Auto defrost
• Straight front glass
• Compressor on built in rails for easy servicing
• Under storage made of white coated steel with adjustable shelf
• Frame prepared for GN containers
• Rear hinged under storage doors
• Suitable for use in ambient temp. up to 25°c & 65% RH

Hot Version:
• External housing made of black coated steel • Black wood front panel with stainless steel
strip
• Bain Marie basin made of acid resistant stainless steel
• Frame prepared for GN containers • Straight front glass
• 20mm Black granite worktop
• Fluorescent lamp
• Device levelling legs
• Temperature regulator
• 2.0mUnitcomeswith2x13AMPplugs

Category: Tag:

Description

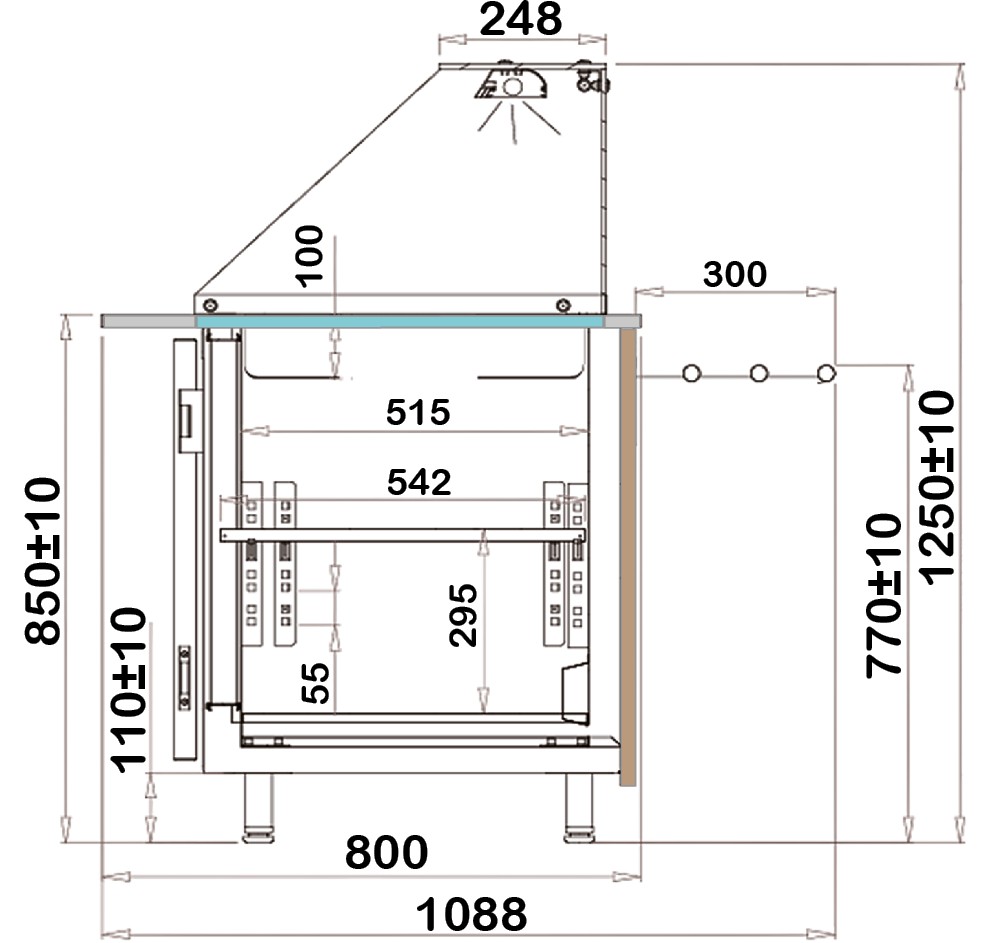

Model

Width (mm)

Height (mm)

Depth (mm)

Temp Range (°c)

GN Config.

Power (w)

Weight (kg)

Voltage

Energy Consumption

Refrigerant

Auto Defrost

RRP

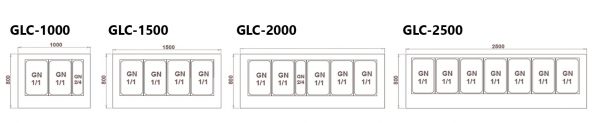

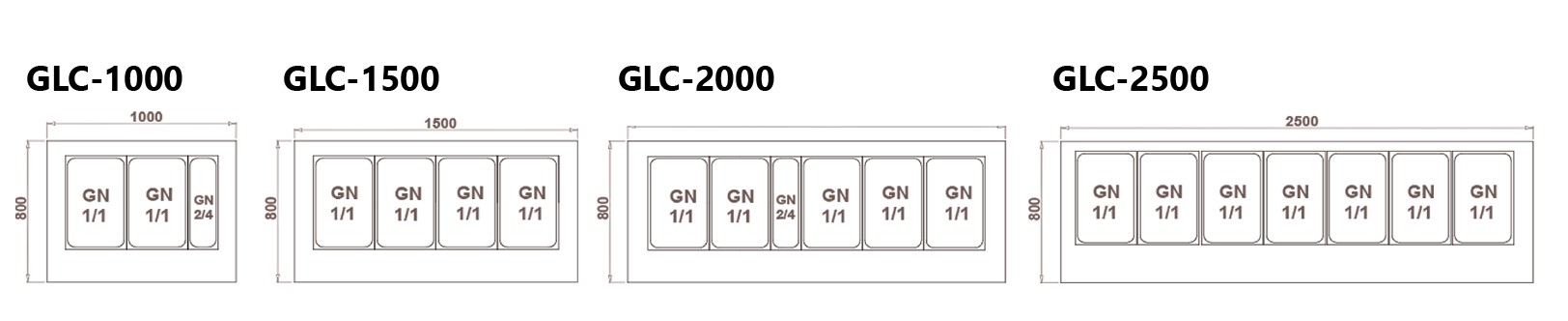

GLC-1000

1000

1250+/-10

800

+2/+8

2×1/1 + 1×2/4

110

230/50Hz

4.7 (kWh/24h)

R134a

Yes

£3890

GLC-1500

1500

1250+/-10

800

+2/+8

4 x 1/1

325

156

230/50Hz

5.2 (kWh/24h)

R134a

Yes

£4604

GLC-2000

2000

1250+/-10

800

+2/+8

5×1/1 + 1×2/4

325

200

230/50Hz

5.2 (kWh/24h)

R134a

Yes

£5564

GLC-2500

2500

1250+/-10

800

+2/+8

7 x 1/1

311

246

230/50Hz

6.0 (kWh/24h)

R134a

Yes

£7129

GLH-1000

1000

1250+/-10

800

+30/+90

2×1/1 + 1×2/4

1618

110

230/50Hz

0.5 (kWh/24h)

–

–

£3801

GLH-1500

1500

1250+/-10

800

+30/+90

4 x 1/1

2460

160

230/50Hz

0.8 (kWh/24h)

–

–

£4471

GLH-2000

2000

1250+/-10

800

+30/+90

5×1/1 + 1×2/4

3250

210

230/50Hz

1.1 (kWh/24h)

–

–

£5383

Colors

black structure white structure black white brown dark grey light grey blue green red orange yellow cappucino silver gold transparent

Black

Structure

 White Structure Black * White * Brown Dark Grey Light Grey Blue Green Red Orange Yellow Cappucino Silver Gold Transparent

Colour of

metal parts –

front

 RAL 9005 RAL 9003 RAL 9005 RAL 9003 RAL 8014 RAL 7031 RAL 7001 RAL 5005 RAL 6029 RAL 3020 – RAL 1018 – RAL 9006 IG 01 –

plastic fenders

colors

 – – OD 05 – – – OD 06 OD 04 OD 02 OD 01 – OD 03 – – – –

Plastic price

stripes colors

 – – LCP 08 LCP 02 – – – LCP 05 LCP 03 LCP 01 LCP 06 LCP 04 – – – LCP 07

plastic sides

colors

 – – AB 03 AB 02 AB 01 – – – – – – – AB 04 AB 05 – –

Anodized

Aluminum

Profiles Colors

 – – – – – – – – – – – – – AL 02 AL 01 –

Downloads

Manual:

Optional Extras

Optional Extras:

3002

Castors (per meter)

£300

1112

Additional glass shelf (per meter)

£100

5555

Heated gantry (per meter)

£270

1018

2/4 GN Container

£54

1118

Foldable tray rail (per meter)

£280

1406

Rear perspex doors

£110

601

Different colour front panel trend finish (per meter)

£330

1117

Tray rail (per meter)

£231
