Standard Features
• Internal aggregate
• Dynamic cooling with automatic defrost
• External glass elements made of combined glass with argon filling and black silk screen
• Innovative system of withdrawable front with electromagnetic lock
• Wooden exterior
• Exposition area made of stainless steel
• Holds 10 Napoli pans (size 360 x 165) or 6 Napoli pans (size 360 x 250)
• Kick plinth made of stainless steel
• Base exterior from staff side made of black coated steel
• Night roller blind (manual)
• LED illuminated front frame
• Electric temperature controller with digital display
• Suitable for use in ambient temp. up to 25°c & 65%RH
• Scoop wash container
|

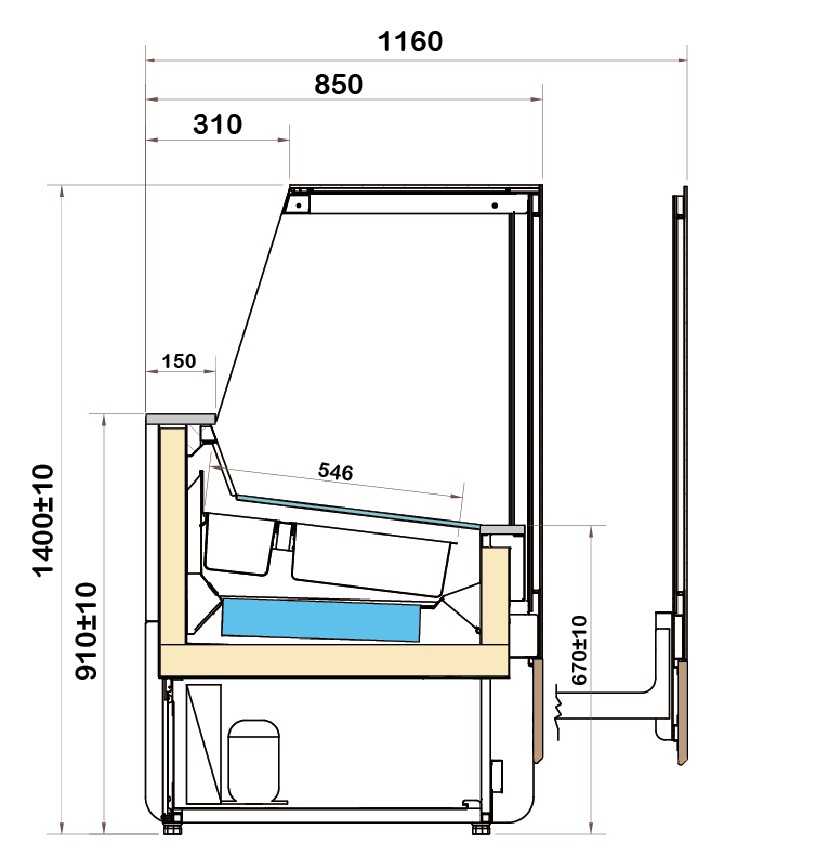

Model |
Width (mm) |
Height (mm) |
Depth (mm) |
Temp. Range (°c) |
Power (w) |
Weight (kg) |
Voltage |
Energy Consumption |
Refrigerant |
Auto defrost |
RRP |
|
INN-ICE140 |
1400 |
1400+/-10 |
850 |
-10/-20 |
1204 |
300 |
230/50Hz |
14.7 (kWh/24h) |
R507 |
Yes |
£11197 |
|
Optional Extras: |
|||||
|
123 |
Multiplexing (per unit) |
+10% |
900 |
Napoli pan 360mm x 250mm |
£65 |
|
902 |
Napoli pan 360mm x 165mm |
£54 |
1030 |
Scoop wash container with water flow system |
£412 |
|
3002 |
Castors (per meter) |
£340 |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| black structure | white structure | black * | white * | brown | dark grey | light grey | blue | green | red | orange | yellow | cappucino | silver | gold | transparent | |
| Colour of metal parts – front | RAL 9005 | RAL 9003 | RAL 9005 | RAL 9003 | RAL 8014 | RAL 7031 | RAL 7001 | RAL 5005 | RAL 6029 | RAL 3020 | – | RAL 1018 | – | RAL 9006 | IG 01 | – |
| plastic fenders colors | – | – | OD 05 | – | – | – | OD 06 | OD 04 | OD 02 | OD 01 | – | OD 03 | – | – | – | – |
| Plastic price stripes colors | – | – | LCP 08 | LCP 02 | – | – | – | LCP 05 | LCP 03 | LCP 01 | LCP 06 | LCP 04 | – | – | – | LCP 07 |
| plastic sides colors | – | – | AB 03 | AB 02 | AB 01 | – | – | – | – | – | – | – | AB 04 | AB 05 | – | – |
| Anodized Aluminum Profiles Colors | – | – | – | – | – | – | – | – | – | – | – | – | – | AL 02 | AL 01 | – |
